PRODUCT

ENTERPRISE BRIEF INTRODUCTION

Commodity: Hi-Bus KNX-DALI Gateway

Model No.: HKL/B1400412J

Office buildings,shopping malls,libraries, convention and exhibition centers and other occasions that require intelligent control of lighting

Product Overview: The digital addressable lighting control interface standard is a specialized intelligent lighting system, which defines the interface standard for digital communication between various intelligent lighting control modules.

Key Features:

  • Switch lighting function
  • Relative dimming function
  • Control the brightness of lighting fixtures
  • Drive fault report; Lamp malfunction report
  • DALI power failure report
  • DALI bus short circuit detection
  • Staircase light mode/Fixed brightness mode
  • Accept up to 64 DALI Interface of each way(total 128),controlling up to 16 scenes each channel
  • Preset function, preset save function.

Power Supply

Operating Voltage

21-30V DC, obtained through EIB bus



Input Voltage

230V AC (50/60Hz)

Input

DALI Channel

2



Model

HKL/B1400412J



Output Voltage

18~20V DC



Maximum output power per channel

4W



Protection

Short circuit and over temperature protection

Connection

EIB/KNX

EIB bus connection terminals



Load Output

2 screw terminals per DALI channel



Load Input

2 screw terminals, one connected to L and one connected to N

Protection type level

IP20, EN60 529



Environmental Temperature

Operating temperature

-5 ℃~45 ℃



Storage temperature

-25 ℃~55 ℃



Transportation temperature

-25 ℃~70 ℃

Environmental

condition

Humidity

<93%, no condensation

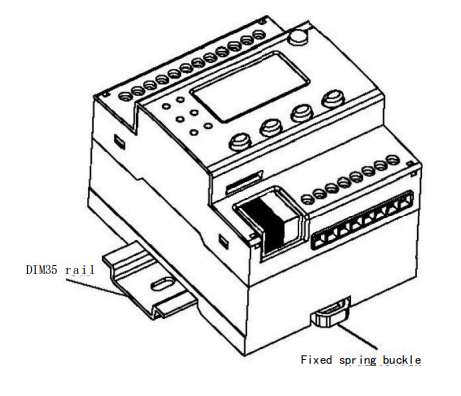

Installation Method

Standard 35mm DIN rail installation



Dimensions

(H*W*D)

90×72×64 mm



CE Standard

Complies with EMC standards and low voltage standards



Certification

EIB/KNX



Weight

0.4kg

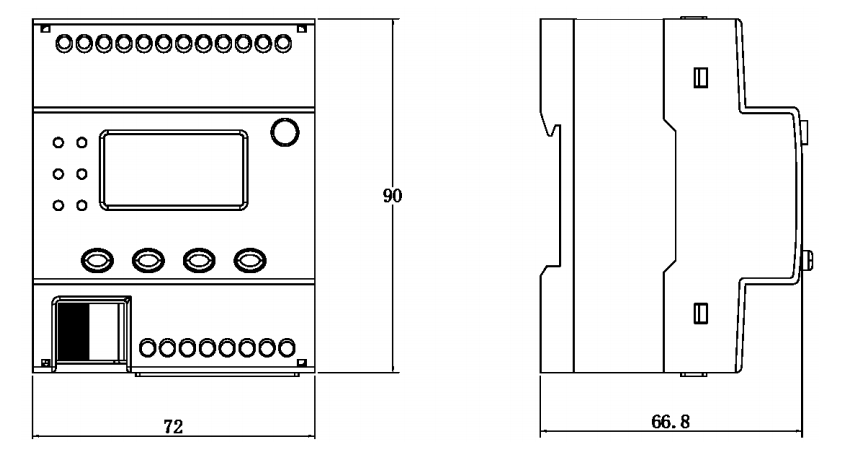

Dimention:

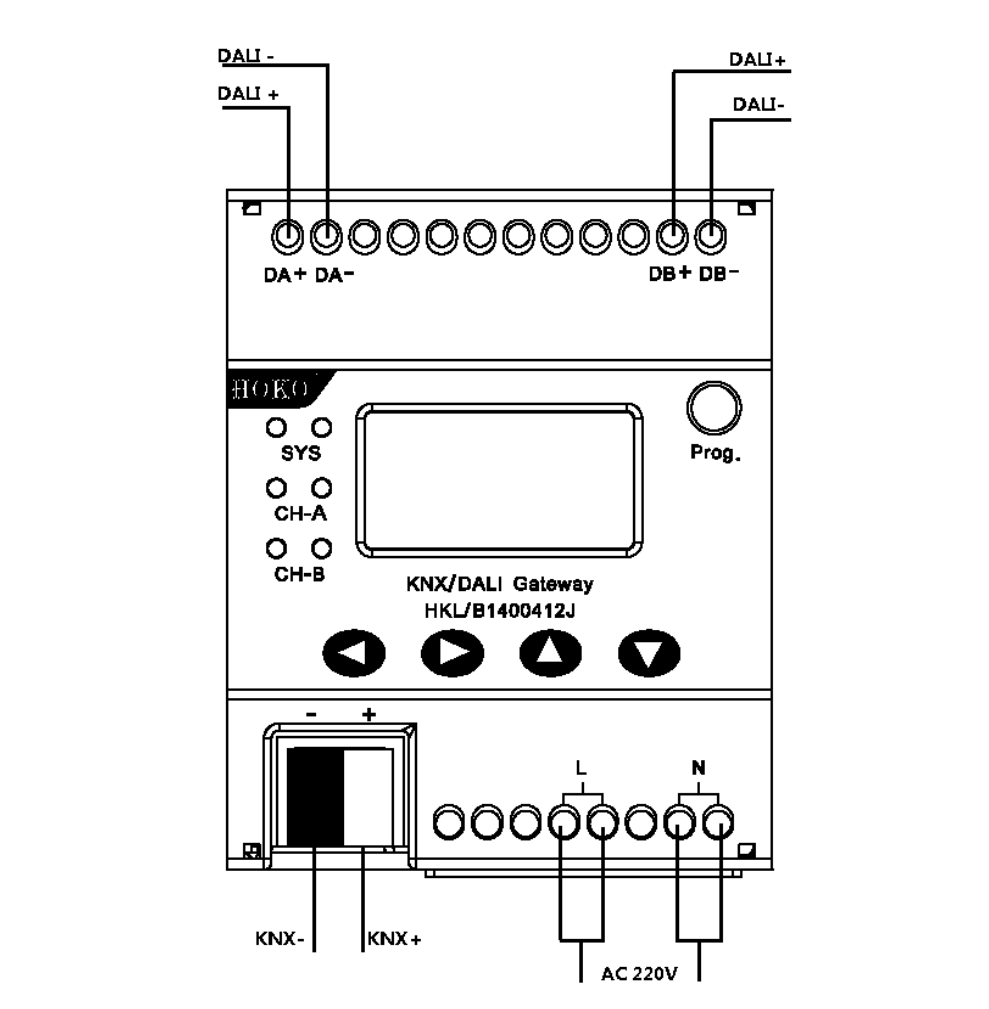

Wiring:

Hi-Bus KNX-DALI Gateway
