ENTERPRISE BRIEF INTRODUCTION

Commodity: Hi-Bus Embedded Connector

Model No.: HKL/J0601412T

Application Scenarios:Used for traditional lighting scheme upgrading to

KNX EIB smart light scheme

Product Overview:

KNX embedded 6-way universal interface module is mainly an ordinary 86 box or 69 square box, and only add an additional KNX bus to transform the original traditional lighting scheme into a modern smart home control system scheme.

Key Features:

  • Up to 6 switch panels
  • LED indication
  • No additional power supply voltage required
  • Dry contact panel input scanning
  • Switch, dimming, louver function
  • Invoke and store scene functions
  • Fixed value sending function

Product Name

KNX embedded 6-way universal interface module

Model

HKL/J0601412T

Power Operation Voltage

EIB 21-30VDC, obtained through EIB bus

Quiescent Current

EIB <12mA

Static Power Consumption

EIB <360mW

LED Output

6-Channel,Common cathode or common anode

LED Output Current

1.5mA

Key-in

Input channel 6

Connect

Suitable for screw thread ends;

Suitable for flexible cable ends

EIB/KNX Bus

Connection terminal connection (red/black)

Output Terminal

0.8mm Ø, connected with screw copper terminals

Using Wire Diameter

0.5-4mm²

Torsional Moment

0.8N-m

Operations and Instructions

Programming Keys and red LED;

The front buttons of the module are used for device programming;

The red indicator light represents entering programming mode;

The flashing green indicator light indicates that the device is running normally.

Protection Grade

IP 20, EN 60 529

Temperature Range

Run at -5 ℃...+45 ℃

Storage

-25℃…+55℃

Transportation

-25℃…+70℃

Environmental Condition

Maximum air humidity<93%, no condensation

Design

Embedded installation devices

Installation

Installed in standard 86 or 60 square boxes.

The depth of the junction box should be at least 50mm, and it is recommended to use a 70mm size/weight of 49.3mm × 49.2mm × 22.5mm, approximately 0.1KG.

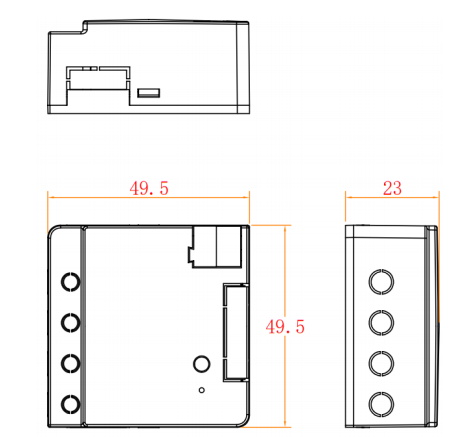

Dimention

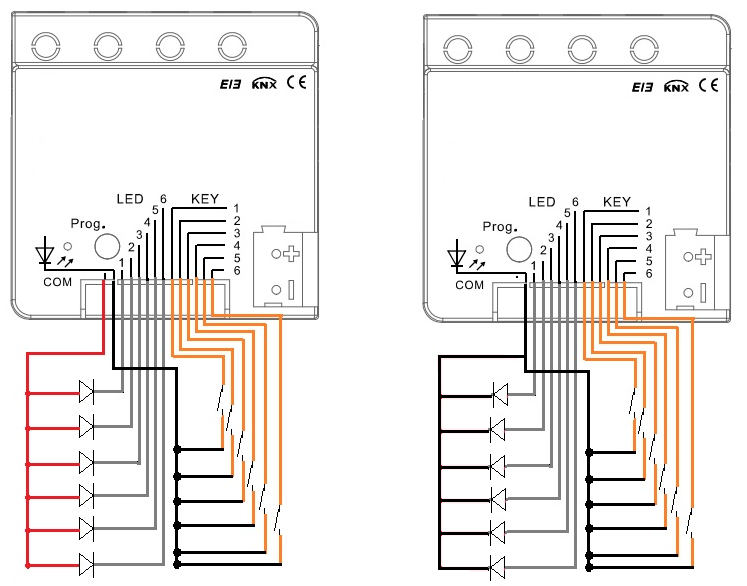

Wiring

   LED common anode                       LED common cathode

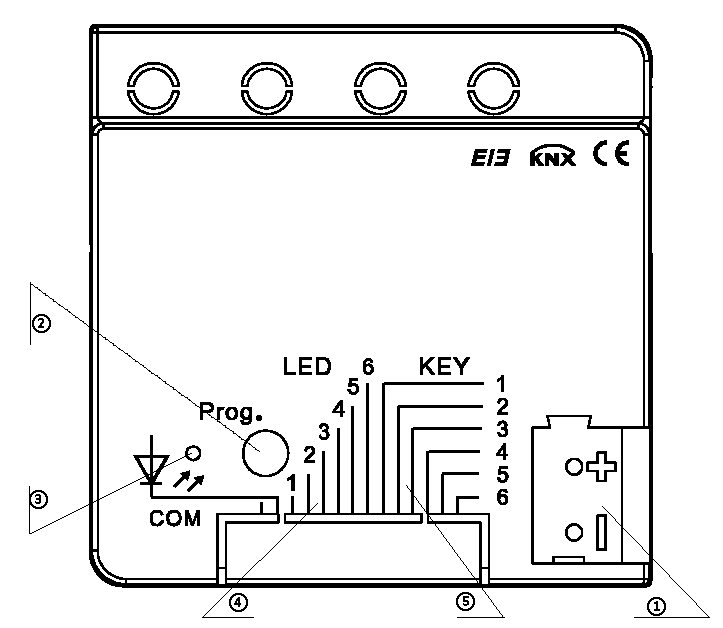

1. KNX/EIB bus line connection terminal

2. Programming button

3. Programming LED

4. LED wiring holder

5. Key wiring holder



Hi-Bus Embedded Connector
