PRODUCT

ENTERPRISE BRIEF INTRODUCTION

Commodity: KNX Universal Dimming Actuator

Model No.: HKL-T0101412J; HKL-T0201412J; HKL-T0401412J

Applications scenarios:Used to create the atmosphere scenes,such as watching movies,entertainment,dining,and rest etc

Product Overview:

The dimming actuator (hereinafter referred to as the “dimmer”) directly controls the channel brightness by utilizing the data of the momory, and the brightness data of the memory is pre-set by the programming software according to the brightness distribution characteristics of the light, and the control circuit of the dimmer converts the brightness data value into output voltage or current to realize the brightness control.

Key Features:

Switch lighting function
Relative dimming function
Control the brightness of lighting fixtures
Status reports, error reports
15 scene settings
Stair light function
Bus reset function
Preset function, preset save function

Power Supply	Operating Voltage	21-30V DC, obtained through EIB bus
Power Supply	Input Voltage	230V AC (50/60Hz)
Input	Number of dimming channels	1/2/4
	Model	HKLT0101412J/ HKLT0201412J /HKL-T0401412J
	Output Voltage	230V AC (50/60Hz)
	Maximum output power per channel	Two dimming channels, each with a power of 1000W; 1 and 4 dimming channels, each with 500W
	Protection	Short circuit and over temperature protection
	Maximum loss per route	5W
Connection	EIB/KNX	EIB bus connection terminals
	Load Output	2 screw terminals per channel
	Load Input	2 screw terminals, one connected to L and one connected to N
KNX Bus Operation and Display	Key and Red LED	Indicates that the current circuit has an output
	Green LED Flashing	Indicates that the current circuit has an output
	Red LED on	Indicates that the current circuit is short circuited and the fuse has blown
	All red LEDs are on	Over temperature indication, when exceeding 90℃, the actuator automatically turns off the output
Protection Type Level	IP20, EN60 529
Environmental Temperature	Operate Temperature	- 5℃~45℃
	Storage Temperature	-25℃~55℃
	Transportation Temperature	-25℃~70℃
Environmental Condition	Humidity	<93%, except for condensation
Installation Method	Standard 35mm DIN rail installation

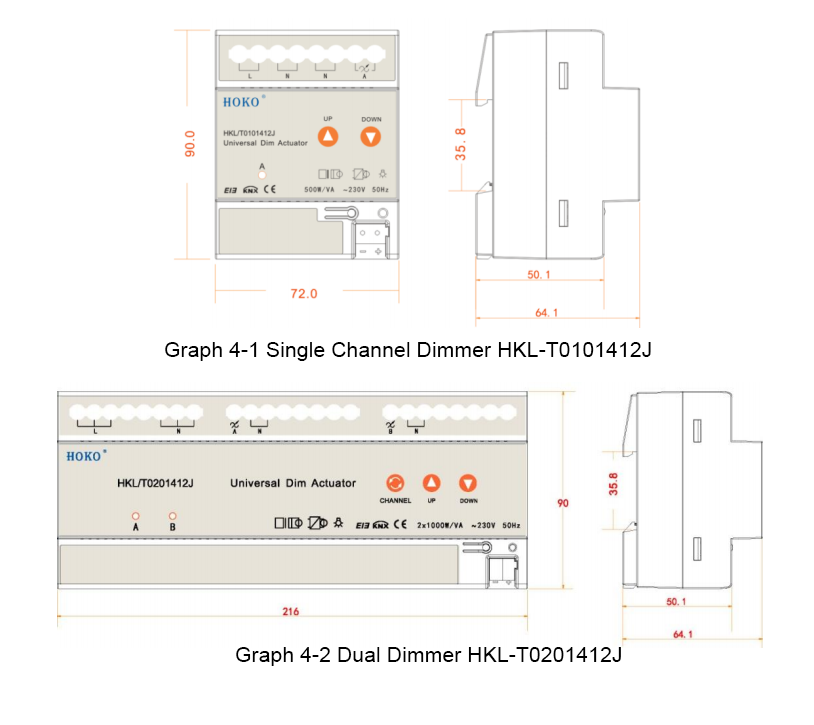

Dimension (HWD)	1 Way 90×72×64 mm
	2 Way 90×216×64 mm

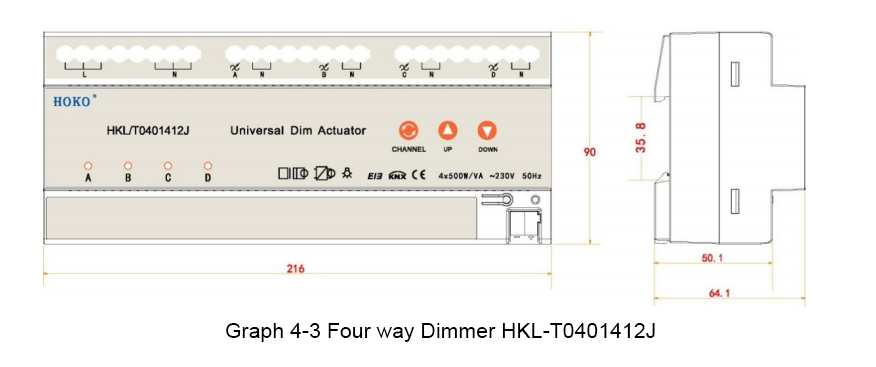

	4 Way 90×216×64 mm
CE Standard	Complies with EMC standards and low voltage standards
Certification	EIB/KNX
Weight	1 Way 0.3kg
	2 Way 0.6kg
	4 Way 0.75kg

KNX Universal Dimming Actuator
